Electrical Panel Manufacturer in Gujarat & India

Electrical Panel Manufacturer & Control Panel Manufacturing Company

Custom LT Panels & Electrical Control Panels Built to Your Specifications — Trusted Electrical Control Panel Manufacturer in Gujarat, Rajasthan, MP & Mumbai

50+

Years Experience

iso 9001:2015

IEC 61439 compliant

UL 508A

Listed

44,000 sq ft

Facility

A Legacy of 50+ Years in Industrial Engineering

Pima Controls is a trusted electrical panel manufacturer in India with over 50 years of experience building custom LT panels for industrial applications. Certified to ISO 9001:2015, IEC 61439, and UL 508A, and tested at CPRI, every panel we manufacture meets the highest safety and performance standards.

From Motor Control Centers (MCC and IMCC) and Power Control Centers (PCC and IPCC) to APFC panels, PLC/HMI control panels, PDB panels, and standalone Drive panels — we engineer and manufacture every panel type your plant needs, in a dedicated 44,000 sq ft facility in Ahmedabad, Gujarat.

We serve OEMs, End Users, System Integrators and Panel Builders across Gujarat, Rajasthan, Madhya Pradesh, and Mumbai — and deliver pan-India.

Our Expertise

Our Panel Manufacturing Capabilities

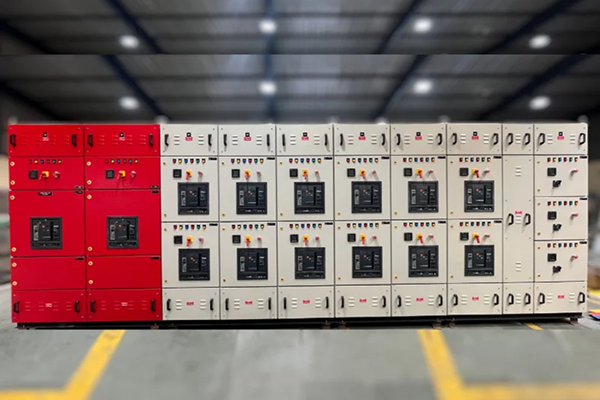

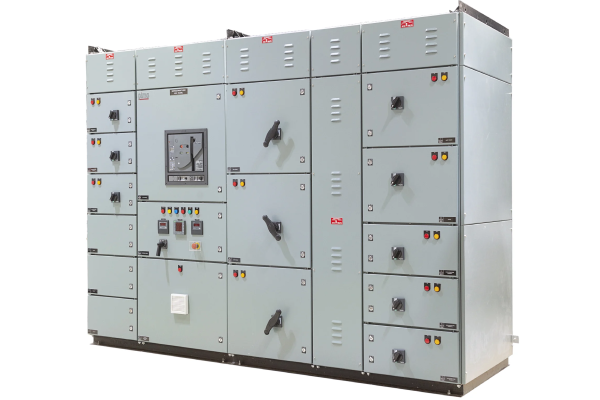

iPCC & PCC Panels

Pima manufactures Power Control Center (PCC) and Intelligent Power Control Center (IPCC) panels for main power distribution in industrial plants, substations, and infrastructure projects. Our LT power panels are built in welded and modular (bolted) structures, rated up to 6300A, and designed for safe, reliable power distribution across multiple load feeders. IPCC panels include real-time power monitoring, advanced protection relays, and bus coupler arrangements as required.

Industries: Cement, Steel, Chemical, Textile, Water Treatment, Power Plants, Infrastructure.

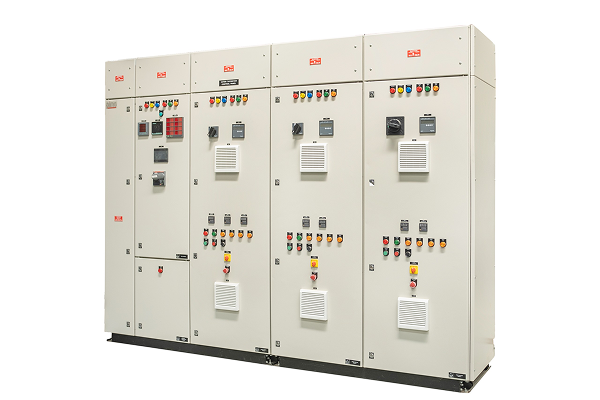

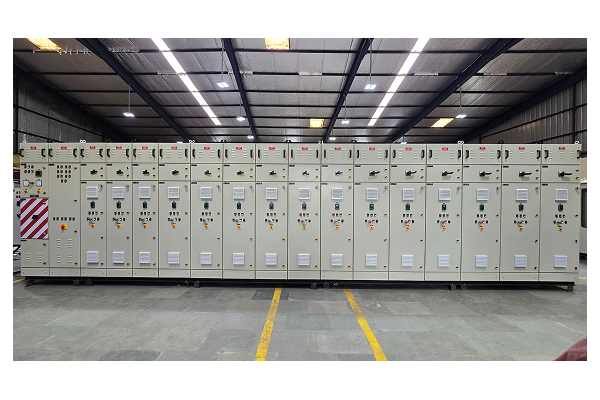

iMCC & MCC Panels

Our MCC and Intelligent MCC (IMCC) panels manage motor-driven loads across pumps, compressors, conveyors, and plant machinery. Each compartment is individually isolated with its own cover, housing combination starters, branch feeder devices, and bus-bar arrangements for outgoing loads and control wiring. IMCC panels support industrial bus protocols — Profibus, ProfiNet, Ethernet/IP, Modbus — for integration with plant-wide automation and SCADA systems. Ratings up to 5000A.

Industries: Pharma, Chemical, Water & Wastewater, Cement, Textile, Food & Beverage, Petrochemical.

PDP / PDB Panels

A Power Distribution Panel (PDP) or Power Distribution Board (PDB) splits electrical power from a single source into multiple circuits for safe, efficient power management across a facility section. Pima designs PDP panels for industrial plants, commercial buildings, and infrastructure projects — with circuit protection, metering, and distribution architecture matched to your load profile.

Typical applications: Factory floor sub-distribution, infrastructure buildings, commercial complexes, hospitals, data centres, utility sub-stations, cleanrooms.

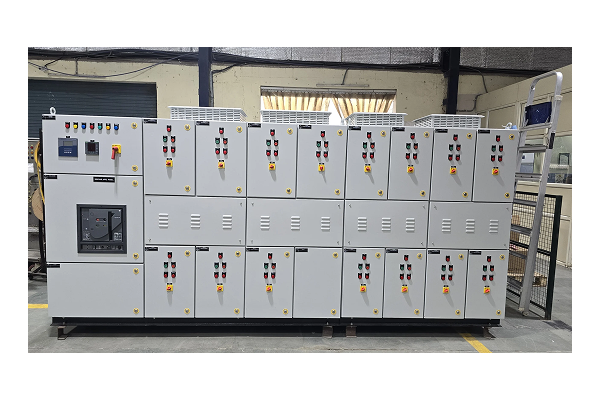

APFC & SVC Panels

APFC (Automatic Power Factor Correction) panels automatically adjust power factor to optimal levels, reducing reactive power penalties and improving energy efficiency. SVC (Static VAR Compensator) panels provide dynamic reactive power compensation for voltage stabilization in networks with variable loads. Pima designs and manufactures both panel types for industrial plants, data centers, and utility-connected facilities.

Industries: Textile (spinning mills), Chemical, Pharma, Foundry, Cement, Steel, Cold Storage.

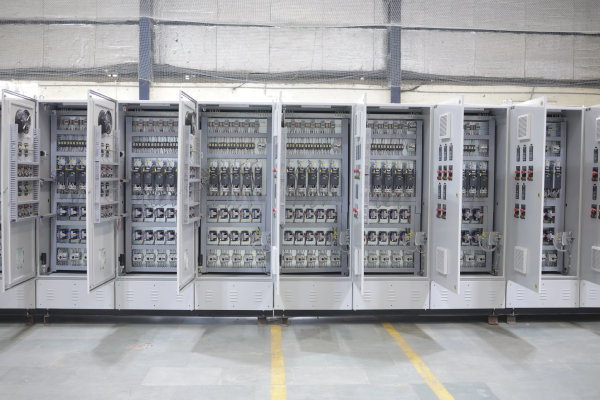

Control Panels for PLC, HMI & VFDs

Pima manufactures PLC control panels, HMI panels, and VFD control panels for process automation and machine control applications. These panels house PLCs, HMIs, variable frequency drives, feeder breakers, and associated control wiring — all within a single, organized enclosure. Available in mild steel (MS) and stainless steel (SS) for clean-room applications in Pharmaceutical, Food & Beverage, and FMCG industries.

Drive Panels (Standalone VFD Panels)

Standalone drive panels house Variable Frequency Drives (VFDs) along with input/output filters, reactors, and all required protection and control components. These self-contained panels deliver precise motor speed and torque control for HVAC systems, pumps, compressors, fans, and conveyors. Pima manufactures standalone drive panels up to 750 KW — custom-engineered for the specific motor and process requirements of your application.

Why Choose Panel Manufacturer

Why Choose Pima Controls as Your Electrical Panel Manufacturer?

01 Heritage

50+ Years of Manufacturing Experience

Since 1984, Pima Controls has been manufacturing electrical panels for India’s most demanding industries — from textile plants in Gujarat to pharmaceutical facilities in Rajasthan. Our engineers don’t just wire panels — they understand the application behind every feeder, every protection setting, every bus bar rating.

1984

Year Founded

500+

Plants Served

02 Compliance

ISO 9001:2015 Certified & UL 508A Listed

Our panel manufacturing is backed by a fully documented quality management system. Every panel goes through a defined process from drawing approval to FAT. Our UL 508A listing makes PIMA panels acceptable to multinational clients, EPC companies, and export-oriented projects with North American compliance requirements.

ISO

9001:2015 QA

UL 508A

Listed Builder

03 Infrastructure

In-House 44,000+ sq ft Manufacturing Facility

Our dedicated panel shop in Ahmedabad is equipped with CNC busbar processing, laser-cut ferrules, precision torque wrenches, and a full testing bay capable of IR testing, HV testing, and functional testing — everything needed for a complete, documented FAT.

44K+

Sq. Ft. Area

100%

FAT Tested

04 Sourcing

Authorized Distributor — Only Genuine Components

As authorized distributors for Rockwell Automation, Schneider Electric, Rittal, and other leading brands, every component in your PIMA panel is genuine, warranted, and supported. No substitutions, no grey-market parts.

100%

Original Parts

Direct

Sourced Guarantee

05 Logistics

Pan-India Delivery & Local Support

With offices in Ahmedabad, Bharuch, Indore, Jaipur, and Mumbai — PIMA panels are delivered and supported locally, wherever your plant is located across Gujarat, Rajasthan, Madhya Pradesh, and Maharashtra.

Industries

Industries We Serve

Automotive & EV Manufacturing

Assembly line control using ControlLogix, part handling with POINT I/O, servo motion with Kinetix drives, and safety with GuardLogix — for both traditional automotive and EV battery assembly.

Pharmaceuticals & Life Sciences

Batch process control using CompactLogix with FactoryTalk Batch, cleanroom-compliant SS panels, FDA 21 CFR Part 11-compatible audit trails, and recipe management with FactoryTalk eProcedure.

Food & Beverage

Hygienic machine control with SS enclosure panels, filling and packaging line automation using CompactLogix + Kinetix servo drives, and ingredient management with FactoryTalk View.

Chemicals & Specialty Materials

Distributed process control with ControlLogix, hazardous area (Zone 2/22) rated sensors, energy monitoring with FactoryTalk Energy Metrics, and SCADA with FactoryTalk View SE.

Water & Wastewater Treatment

Pump control and SCADA with redundant ControlLogix, level and flow monitoring with Allen-Bradley field instruments, and remote site access via FactoryTalk Remote Access.

Textile & Packaging

High-speed machine control using CompactLogix with PowerFlex 755 drives for tension control, spindle speed, and winding — plus servo motion with Kinetix 5500 for precision cut-to-length and indexing.

Our Process

How We Manufacture Your Panel — Step by Step

Requirement Review

We study your SLD, load list, specifications, and environment conditions. We ask the right questions upfront: protection coordination, communication protocol, installation environment, and compliance requirements.

01

Engineering & Design Approval

Our engineers prepare GA drawings, wiring diagrams, and BOM for your review and approval before a single component is ordered.

02

Genuine Component Procurement

Components are sourced directly from authorized channels — Rockwell, Schneider, Rittal, and other technology partners.

03

Assembly & Wiring

Our skilled panel wiremen work to documented wiring instructions and IEC color coding standards. Every cable is ferrule-labelled. Every terminal is checked against the wiring diagram.

04

Factory Acceptance Test (FAT)

Each panel undergoes Insulation Resistance (IR) testing, High Voltage (HV) testing, and full functional testing before dispatch. A complete test report is issued with every panel.

05

Documentation & Dispatch

You receive: As-built wiring drawings, FAT test report, component datasheets, operation & maintenance manual — everything your site engineer needs for installation and energization.

06

Certifications & Compliance

Quality Certifications & Compliance Standards

ISO 9001:2015

Every panel is manufactured under a documented Quality Management System. Consistent quality, every time.

IEC 61439

Panels meet the international standard for LT switchgear and controlgear assemblies — covers safety, performance, and testing requirements.

UL 508A

PIMA panels meet North American safety standards for Industrial Control Panels — required for MNCs, export projects, and US-standard facilities in India.

CPRI Tested

Central Power Research Institute testing confirms performance under Indian grid conditions.

FAQ

Frequently Asked Questions Panel Manufacturing Products

What types of electrical panels does Pima Controls manufacture?

We manufacture a full range of LT industrial panels including MCC, IMCC, PCC, IPCC, PDP/PDB, APFC, SVC, PLC/HMI/VFD control panels, and standalone drive panels.

What is the maximum panel rating you offer?

PCC/IPCC panels are built up to 6,300A, MCC/IMCC up to 5,000A, and standalone drive panels up to 750 kW.

Are your panels UL 508A certified?

Yes, our panels are UL 508A listed, meeting North American safety standards required by many EPCs and multinational clients.

Do you manufacture stainless steel panels for pharma or food industries?

Yes, we provide SS enclosure panels designed for pharma, food & beverage, and biotech environments requiring hygienic and washdown-safe systems.

What is the difference between MCC and IMCC?

MCC handles motor control and protection, while IMCC adds real-time monitoring, communication, and integration with SCADA systems.

What is a PDB in electrical systems?

PDB stands for Power Distribution Board (also called PDP), used to distribute power from one source to multiple circuits. We manufacture custom panels from 160A to 3,200A.

How much can an APFC panel reduce electricity bills?

Typically, APFC panels help reduce electricity costs by 10–18% by improving power factor and avoiding penalties, depending on usage.

Do you provide testing and documentation?

Yes, all panels undergo IR, HV, and functional FAT. We provide wiring diagrams, test reports, datasheets, and O&M manuals.

Still have questions?

Talk to our automation experts today.

Get Custom Electrical Panels Built to Your Exact Specifications

Whether you need a single standalone drive panel or a complete MCC room with a 6,300A PCC — Pima Controls has the engineering expertise, certified facility, authorized components, and 50+ years of application knowledge to deliver on time and on spec.
